Pavitec Hp

High adherence anti-cracking reinforcing panels

  • Construction
Made In Italy

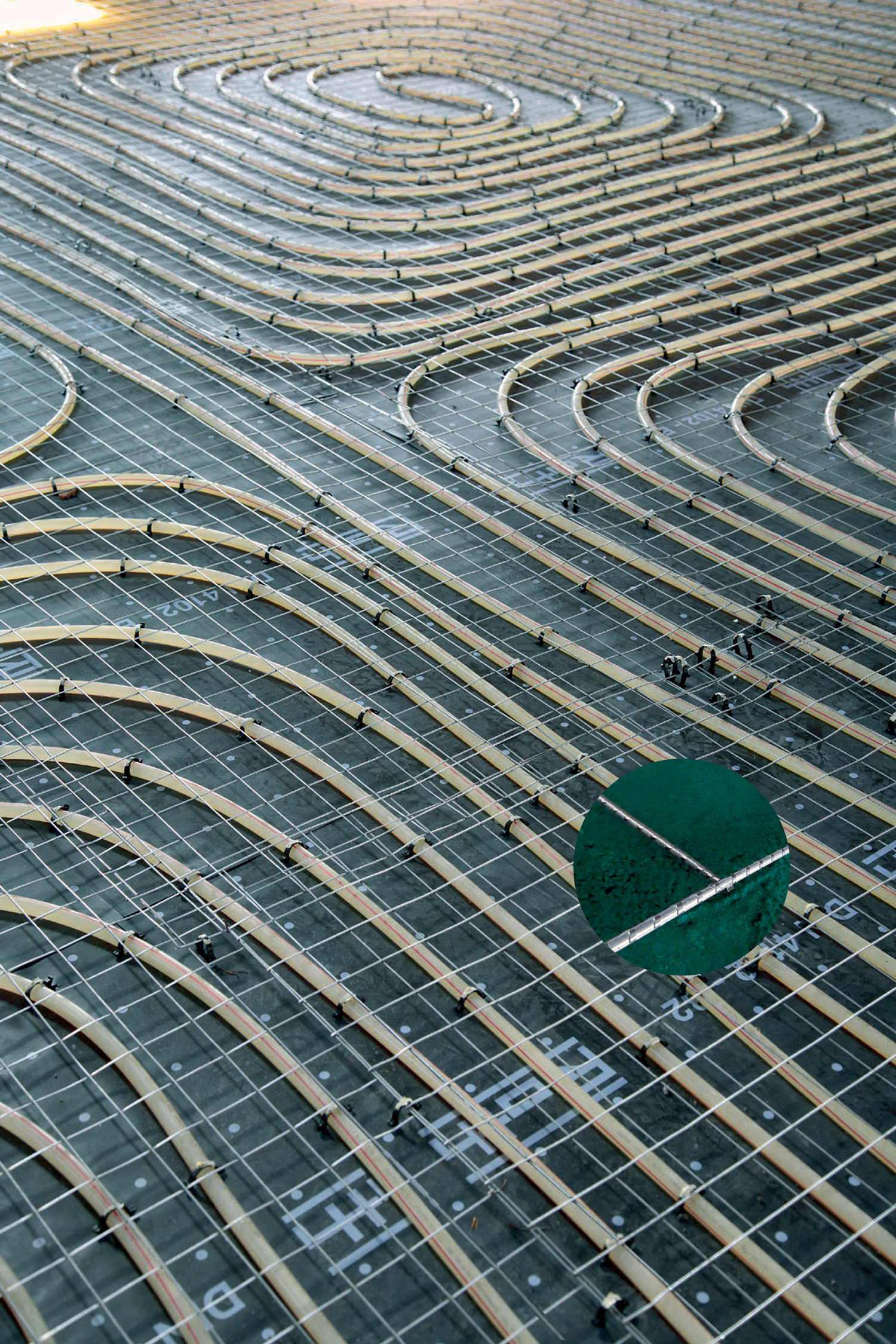

Electro-welded fencing in panels, with square-shaped mesh. Both vertical and horizontal wires are galvanized. The surface of the wires characterized by the presence of evenly distributed ribs along the entire length which hinder the mutual sliding between steel and concrete thereby improve the adhesion between the panel and the concrete. Pavitec HP gives homogeneity to the screed (or slab) and, therefore, a greater compactness, a pronounced resistance to shocks and a lower fragility. Used in the construction of heated and floating floors, it prevents the formation of cracks in the concrete slab.

This product is mainly used to prevent cracking caused by hygrometric shrinkage and as a light reinforcement on heated and floating floors. In comparison to the Pavitec panel, Pavitec HP is produced with a thicker wire, giving the panel more durability and solidity thus providing better protection against movement and the resultant cracks in floors. The panels of the Pavitec HP line are completely devoid of sharp edges and, therefore, comply with the regulations regarding the protection of safety in the workplace.

Fact file

Electro welded
Panel height
cm 100
Panel length
cm 200
mm 100 x 100
∅ Wires
mm 3,00
Light armouring with anti cracking function for heated and floating floors
Bundles of 15 panels on pallets with 18 packages each, for a total of 270 panels
