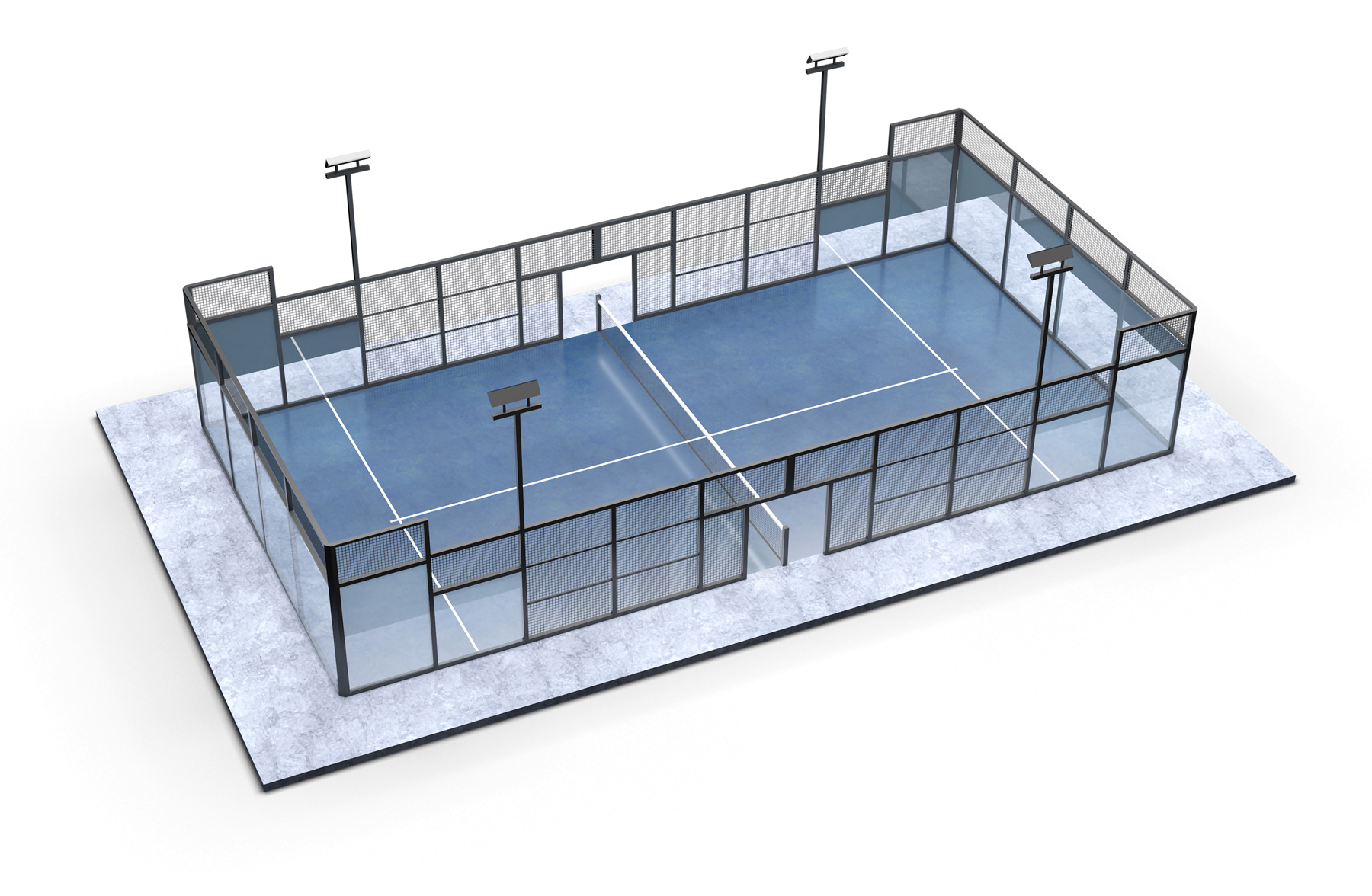

Panels in galvanised electro-welded mesh, specifically designed for the construction of the metal structure that delimits standard PADEL-TENNIS courts. More specifically, the panels are designed for the construction of that part of the structure that is not only an active playing surface, but also allows an exchange of air inside the court. The panels are perfectly suitable both for indoor and outdoor use (gyms or tensile structures) due to the production techniques and the high quality of the materials, which guarantee maximum protection against corrosion.
After studying the types of court (single, double, indoor, outdoor) and the characteristics of the game, Cavatorta has optimised the size of the panels required to achieve the best possible result in terms of structure. The standard dimensions proposed are 1000 x 2000 mm and 2000 x 3000 mm with a constant mesh size of 50.8 x 50.8 mm. The modular panels in galvanised steel wire are available in different finishes: PAD-PANEL GALVA, hot-dip galvanised // PAD-PANEL TEC, zinc/aluminium coated. PAD-PANEL PLAX, PVC coating.
Pad-Sport
ELECTRO-WELDED PANELS FOR PADEL-TENNIS COURTS
Made In Italy
Fact file
- MESH
- Electro welded panels
- MESH
- 50,8 x 50,8 mm
- COATING
- Hot-dip galvanised // Zinc-Aluminium // PVC
- Ø WIRES
- mm 3,70
- Max. breaking load wire unit
- 450-550 N/mm2 (UNI - EN 10244-2)
- APPLICATIONS
- Padel court fencing system
Note
Cavatorta’s high level of production flexibility enables the company to meet specific customer requirements by producing panels in non-standard sizes and colours.
